OX Fusion Multi Gym MG4 – Compact All-in-One Home Gym Trainer

Exercise Coverage (Main Unit):

• Chest/Shoulders: chest press (flat/incline), shoulder press, pec fly (via arms), upright rows
• Back: lat pulldown (wide/narrow), seated row (low/mid), rear delts
• Arms: bicep curls (standing/cable preacher), tricep pushdowns/extensions
• Core/Functional: cable crunch, rotations, Pallof press, single-arm crossovers
• Legs (cable-based): leg extension, standing leg curl, hip kickback, Standing Cable Hip Abduction

Technical Specifications (Main):

• Net Weight: 207.5 kg
• Selectorized Stack: 90 kg total (6 kg increments)
• Press Arm Angle: 6 settings, 103° total
• Functional Arms: 11 settings, 210° range (21° steps)
• Backrest: 10 positions (30 mm steps)
• Seat: 6 positions (30 mm steps)

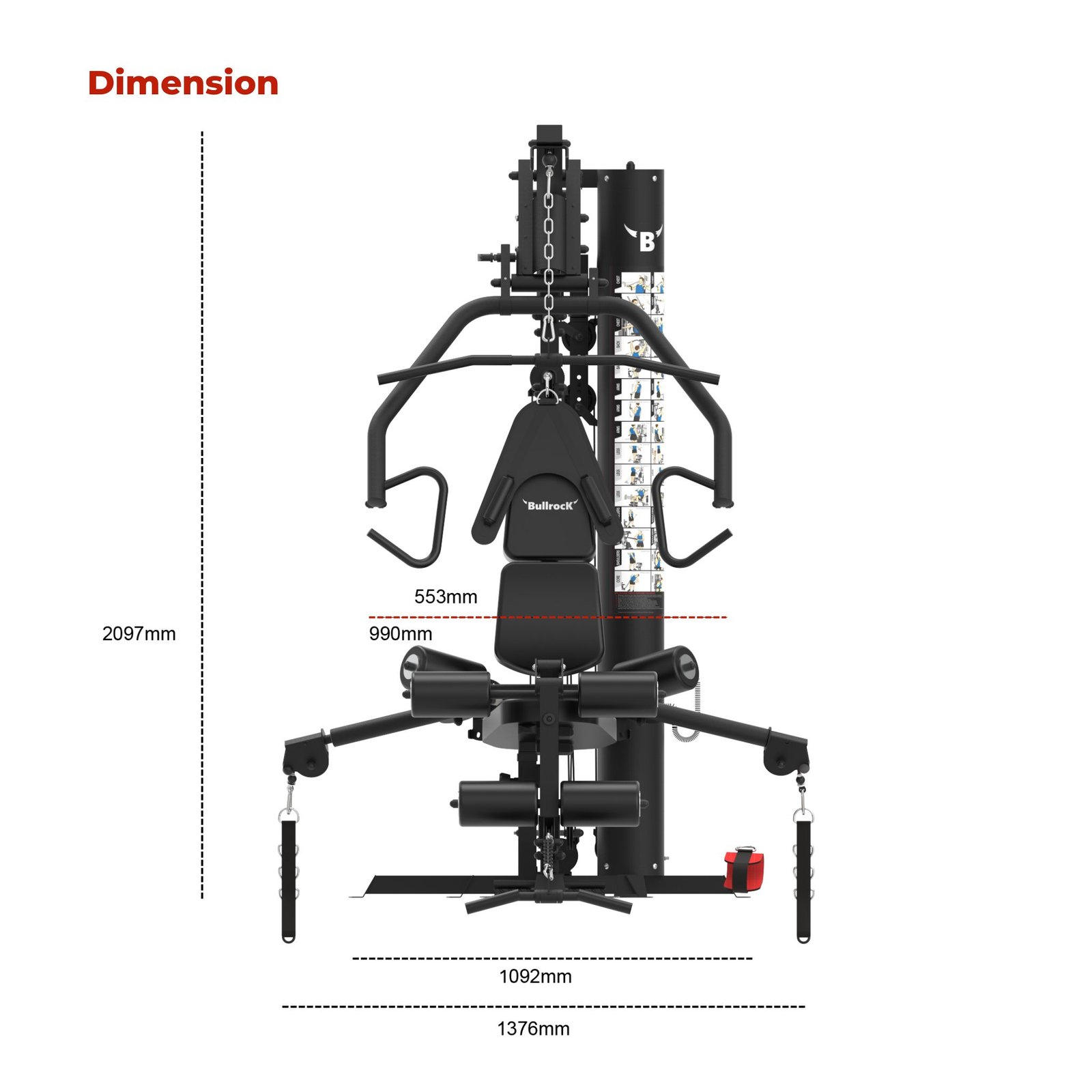

• Footprint (without leg press, incl. functional arms): 137.6 × 217.3 × 209.7 cm (L × W × H) · 54.2″ × 85.5″ × 82.6″

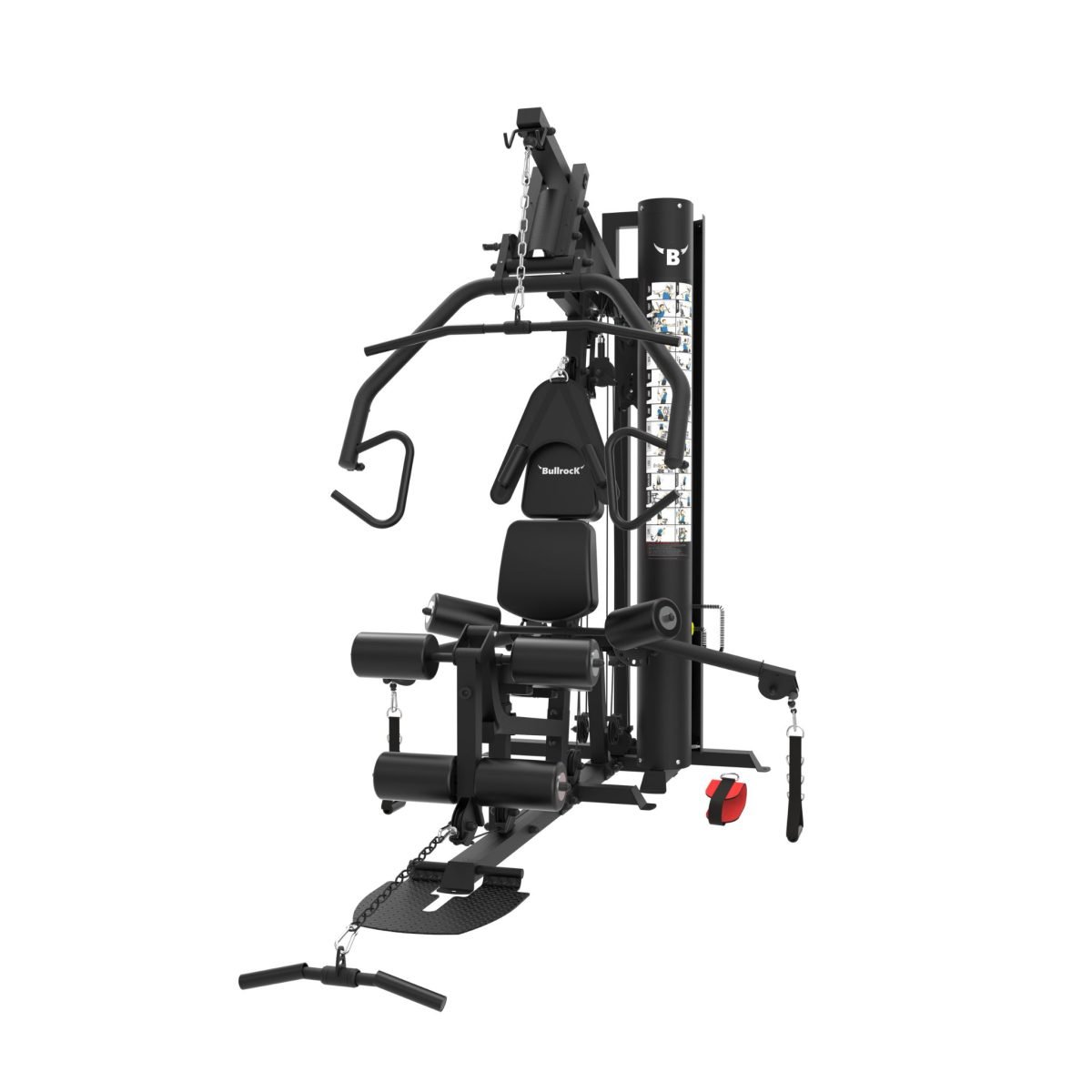

Included Items: As shown in the First product Image: Main Unit, Lat bar, short bar, ab harness, ankle cuff, chain extension, carabiners, D cable handles, carabiners.

Pulley Ratios by Station

• Lat Pulldown: 1:1

• Seated / Low Row: 1:1

• Press Arm (Chest/Shoulder): 1:1

• Functional Arms: 2:1

• Leg Extension: 1:1

• Standing Leg Curl: 1:1

• Ab Crunch / Mid Pulley: 1:1

• Leg Press (Attachment): 1:1.3

Pulley ratio = how much of the selected weight is felt at the handle or footplate.

Example: 1:1 means 90 kg selected = 90 kg felt; 2:1 means 90 kg selected = 45 kg felt.

 Warranty (Home Use):

• 10 Years: Frame components and welds (excluding coatings)
• 3 Years: Bushings, sealed rotating bearings, pulleys, weight plates and guide rods
• 1 Year: Labor; cables, linear bearings and shafts and all other components not mentioned elsewhere in this warranty.
• 90 Days: Normal wear parts including but not limited to labels, upholstered pads and grips

FAQs:

• Q: Can I add a leg press later?

   A: Yes

• Q: Suitable for tall users (6 ft+)?

   A: Yes, via backrest/seat/arm angle adjustments.

• Q: How much space and ceiling height do I need for the OX Fusion Multi Gym MG4 (and MG4 + Leg Press)?

    Main Unit Footprint (incl. functional arms): 137.6 × 217.3 × 209.7 cm (L × W × H) · 54.2″ × 85.5″ × 82.6″
    Combo Footprint (with Leg Press): 236.5 × 217.3 × 209.7 cm (L × W × H) · 93.1″ × 85.5″ × 82.6″
    Ceiling: Works in 8-ft rooms (≥ 244 cm). Leave 10–15 cm clearance above the top pulley for smooth travel.
    Operational clearance: Keep 60 cm free space at the front and sides for arm travel and leg-press movement.
    Doorway fit: Ships in cartons; fits standard 30–36″ doors (no single part equals the full assembled width).
